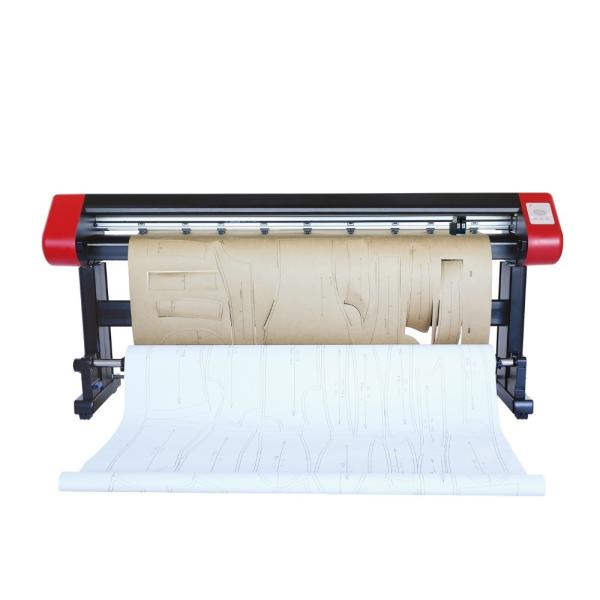

500W Print And Cut Machine , High Performance Vertical Cutting Plotter

Hefei Huiteng Numerical Control Technology Co., Ltd.

500W Print And Cut Machine , High Performance Vertical Cutting Plotter

  • 1
  • 2

Place of Origin : Anhui, China

Brand Name : TOURE

Model Number : TW-2200

Supply Ability : 500 Case/Cases per Month

Packaging Details : International standard wood case(250cm*48cm*50cm)

MOQ : 1 Case/Cases

Price : $800.00 - $2,500.00 / Cases

Color & Page : Single Color

Gross Power : 500W

Plate Type : Garment CAD plotter

Automatic Grade : Automatic

Voltage : 110V/220V

Dimensions(L*W*H) : 250cm*48cm*50cm

Weight : 80KG

Port : Shanghai Port

Contact Now

500W Print And Cut Machine , High Performance Vertical Cutting Plotter

Discription:

Vinyl cutters use self-adhesive vinyl in combination with a blade to cut out vinyl decals and letters.

A vinyl cutting machine can create long-term (permanent) graphics or short-term vinyl decals depending on the type of vinyl film you load.

Types of vinyl films include:

  • Removable vinyl film for short term lettering and graphics
  • Long-lasting permanent vinyl film to create vinyl decals that can last for years

Sometimes the terms “vinyl cutting plotter”, “vinyl graphics cutter”, or “decal cutter” are used, but they refer to the same type of equipment. Many of our models include floor stands, Vinyl Express LXi sign making software, cutting blades, cables and even plotting pens.

Specification
Type
TJ12
TW19
TW21
Maxximum paper width
1300mm
2000mm
2200mm
The Maxximum width of the drawing
1150mm
1900mm
2100mm
Number of print cartridge/Type
Dual Spray/HP generic ink cartridegs HP45/6145A
Driving
Digital high-speed servo control,full closed loop positioning
Resolution
150-600DPI(Toner Save Mode Optionnal)
Print speed
80-120㎡/Bidirectional
Command Format
HP-GL
Communication port
USB,Notwork Printing
Software platform
XP,windows7,window8,window10
Nozzle cleaning
Automatic cleaning function
Close Feed
Front automatic admission feeder system,may waive paper printing, convenient printing a large number of short pieces of Mark, saving paper loading time
Enrirnomental Requirements
Temperature of 10℃-35℃ Humidity RH15-85%(no condensation)
Input Voltage
AC220V/60hz power of not less than 400W (AC110V optional)
Detailed Images
500W Print And Cut Machine , High Performance Vertical Cutting Plotter
500W Print And Cut Machine , High Performance Vertical Cutting Plotter
500W Print And Cut Machine , High Performance Vertical Cutting Plotter

Cartridges

Unique built-in cartridges, to make the maximum format of printing area.

Mainboard

More stable

Drive

Digital high-speed servo control, full closed loop positioning.

Company Introduction
500W Print And Cut Machine , High Performance Vertical Cutting Plotter
500W Print And Cut Machine , High Performance Vertical Cutting Plotter
500W Print And Cut Machine , High Performance Vertical Cutting Plotter

Hefei Huiteng Numerical Control Technology Co.,Ltd, our company is a professional garment CAD/CAM hardware and software manufacture from P.R.China. We are in Hefei, a very beautiful city in Anhui province. We have nearly ten-year rich experience specializing in research, development, manufacture and sales of the CAD plotters.We can offer a direct sale and good after-sale service to our customers. In recent years, our products are sold to europe, Southeast Asia, Africa and etc.

Packing & Delivery
500W Print And Cut Machine , High Performance Vertical Cutting Plotter
We adopt the wood case to protect the products not damaged and once we receive the payment, we will arrange the shipment in seven days.
